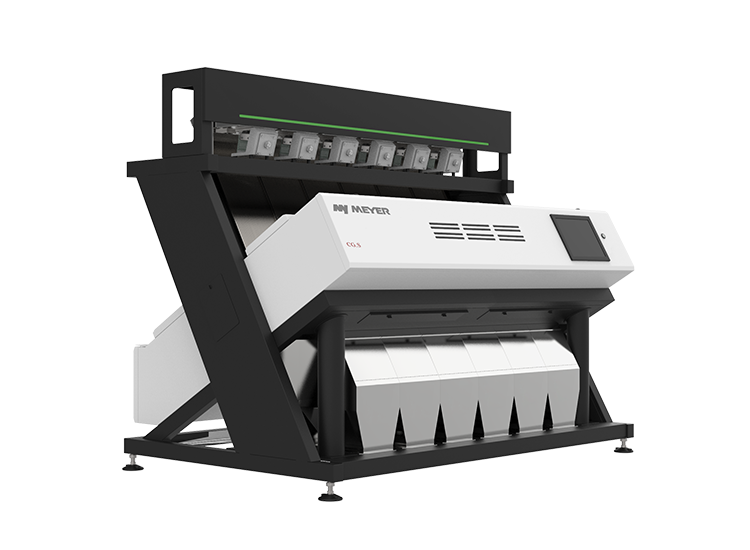

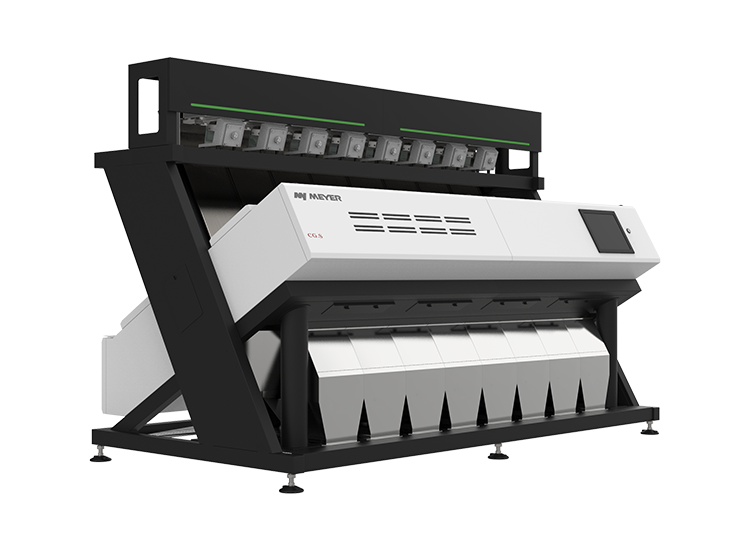

CG.S Series Multi-usage Color Sorter

The CG S Multi-Color Sorter is an advanced machine designed for high production capacity. It features optional AI deep learning technology, enabling precise sorting of complex impurities and defects. With its standardized and modular design, it is ideal for sorting and grading a wide range of granular materials.

Performance Overview

Suitable for sorting and grading of white sesame, black sesame, flaxseed, black seed, spices etc. It features optional AI deep learning technology and multi-spectrum recognition, which can remove moldy, discolored, insect-bitten, broken, and other impurities. It also includes functions for long/short grading, big/small grading, and long/round grading, and can reject complex impurities and defects that traditional algorithms struggle to handle.

Application Field

☛ Oilseed: Black Sesame, Flaxseed, Black Seed

☛ Fruit & Vegetable: Pepper
Main Image

CG.S Series

Multi-usage Color Sorter

Enquire
Contact Us

KNOW ABOUT

Product Specifications

Built with

Multi-spectral Recognition Technology

Offers multi-dimensional solutions for sorting and inspecting color, shape, texture, material, and more, addressing a wide range of user-specific processing needs.

Features an optional UV sorting system that effectively removes aflatoxin-infected particles, ensuring safer food production.

Equipped with

AI Deep Learning Technology, Doubling the Yield of Shredding

Leveraging massive rice data, the system rapidly builds and iterates deep learning sorting models, overcoming the limitations of traditional shape sorting technology, and significantly improving precision in sorting, shredding, and intermixing—resulting in doubled output.

In the out-of-warehouse segment, one color sorter can accommodate multiple packing scales, quickly adapting to the processing needs of various rice varieties, small batches, and customized orders.

Built with

Engineered Design, Intelligent Manufacturing

The whole machine's structure is highly modular and standardized, and 70% of the parts and components had automated and intelligently produced, which greatly enhances the reliability of products.

Guarantee the effect of continuous processing, long-term use of stable, lower maintenance costs, more assured after-sales.

know about

Key Features

Digital Electrical Control System

Adoption of topological structure reduces redundant control modules by 45% and realizes hidden wiring design, which controls the sudden failure of core components from the source and guarantees a stable and reliable operation process.

High-frequency Vibrator

Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.

Intelligent Upper Vacuum Technology

Efficient filtration of light drift, dust and other impurities at the feed end to ensure a more pure feed.

Intelligent Front Vacuum Technology

Efficient filtration of light drift, dust and other impurities at the discharge end, to improve sorting performance.

Anodizing Channel

High wear resistance to meet the needs of long time and high output processing.

Ultra-HD Camera System

Adopting low distortion camera lens, industrial-grade four-color CCD sensor, the minimum identification area can reach 0.0025mm², to ensure clearer material identification.

Intelligent Shape Sorting Technology

By extracting material information, accurately identifying shape differences such as long/round, long/short, large/small, etc. to meet diversified grading needs.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Maglev Ejector 3.0

Using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Intelligent Anti-shattering Technology

Through the targeted rejection algorithm and soft landing design, reduces the stress on the material and maximizes the control of breakage.

Simple Interface

Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.

Intelligent Alarm

Equipped with visual LED, so that the signal, light, air pressure and other abnormal conditions can be easily detected and solvedc, making the processing process more assured.

Remote Service

PC/mobile control, can provide online after-sales service such as commissioning, physical examination, maintenance guidance.

Channel Intelligent Thermostat Technology

Keeping the chutes at a constant temperature of 55°C and in a dry state ensures that the material can transfer more smoothly.
Name Model Name Power (KW) Voltage (V) Air Pressure (MPa) Air Consumption (m³/min) Dimension (L*W*H mm) Weight (kg)
360CG.S
6SXZ-360CG2
2.7
180～240 50Hz
0.6～0.8
<5.5
2533*1564*2020
1400
480CG.A
6SXZ-480CG2
3.4
180～240 50Hz
0.6～0.8
<6.5
2991*1564*2020
1750
600CG.A
6SXZ-600CG2
4.0
180～240 50Hz
0.6～0.8
<8.0
3583*1564*2020
2090
780CG.S
6SXZ-780CG
5.0
180～240 50Hz
0.6～0.8
<10.0
4445*1620*2020
2800
