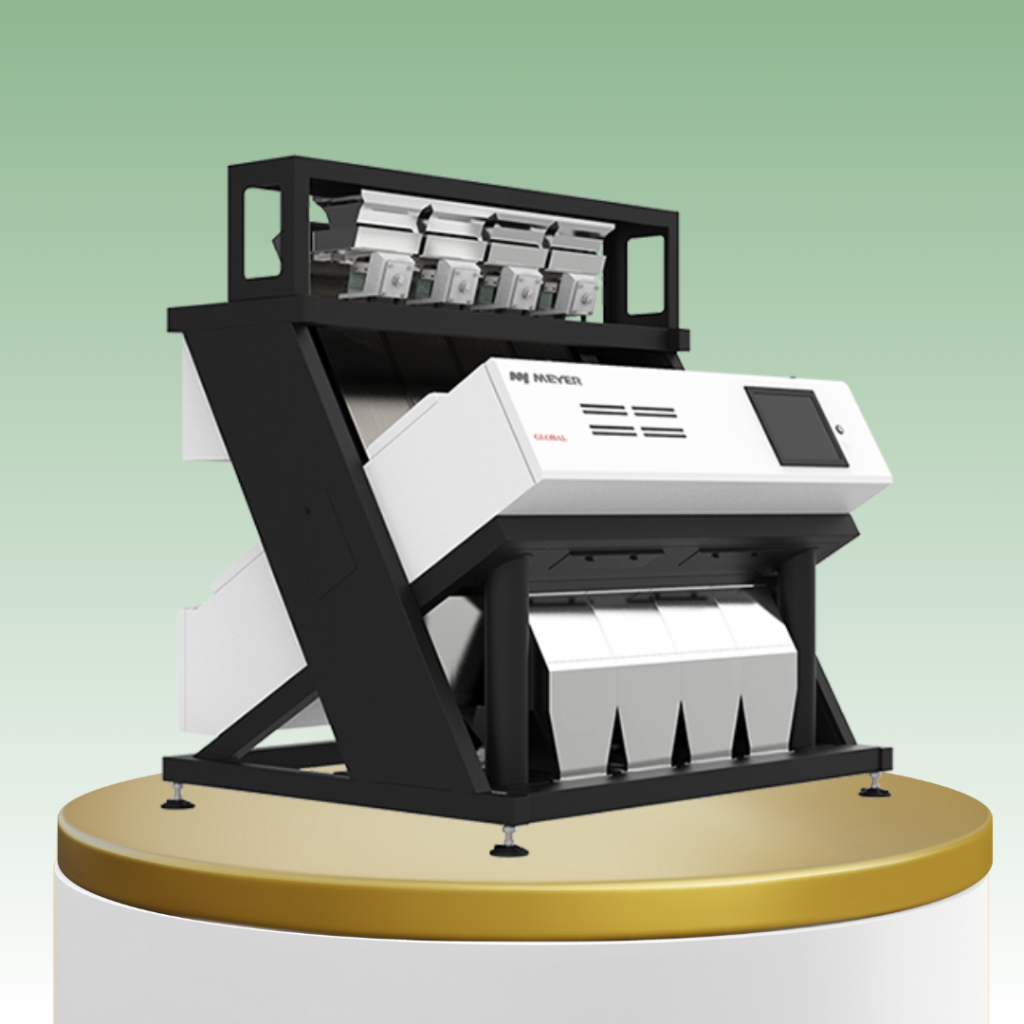

GLOBAL Series Rice Color Sorter

The GLOBAL Series Rice Color Sorter is a high-performance machine designed for efficient rice sorting and grading crafted for unmatched stability and exceptional performance.

Performance Overview

Perfect for rice sorting and grading, the system effectively removes yellow, moldy, discolored, broken rice, paddy, and rice husks. It also offers versatile solutions, including yellow shredding grading, white shredding grading, and simultaneous yellow-white sorting.

Application Field

Japonica Rice/Indica Rice, Glutinous Rice, Steamed Rice, Brown Rice, Black Rice, Germ Rice, Indian Long Grain Rice, Thai Fragrant Rice, Vietnam Jasmine Rice, Pakistani White Rice, Red Rice, Purple Rice, Blood Glutinous Rice
Main Image

GLOBAL Series
Rice Color Sorter

Enquire
Contact Us

KNOW ABOUT

Product Specifications

Built with

Engineered Design, Intelligent Manufacturing

The whole machine's structure is highly modular and standardized, and 70% of the parts and components had automated and intelligently produced, which greatly enhances the reliability of products.

Guarantee the effect of continuous processing, long-term use of stable, lower maintenance costs, more assured after-sales.

know about

Key Features

Digital Electrical Control System

Adoption of topological structure reduces redundant control modules by 45% and realizes hidden wiring design, which controls the sudden failure of core components from the source and guarantees a stable and reliable operation process.

High-frequency Vibrator

Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.

Intelligent Upper Vacuum Technology

Efficient filtration of light drift, dust and other impurities at the feed end to ensure a more pure feed.

Intelligent Front Vacuum Technology

Efficient filtration of light drift, dust and other impurities at the discharge end, to improve sorting performance.

Anodizing Channel

High wear resistance to meet the needs of long time and high output processing.

Ultra-HD Camera System

The minimum identification area can reach 0.0025mm², to ensure clearer material identification.

Intelligent Shape Sorting Technology

By extracting material information, accurately identifying shape differences such as long/round, long/short, large/small, etc. to meet diversified grading needs.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Maglev Ejector 3.0

Using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Intelligent Anti-shattering Technology

Through the targeted rejection algorithm and soft landing design, reduces the stress on the material and maximizes the control of breakage.

Name Model Name Power (KW) Voltage (V) Air Pressure (MPa) Air Consumption (m³/min) Dimension (L*W*H mm) Weight (kg)
240GLOBAL
MSXC-240RD2
2.0
180～240 50Hz
0.6～0.8
<2.0
1891*1564*2020
1110

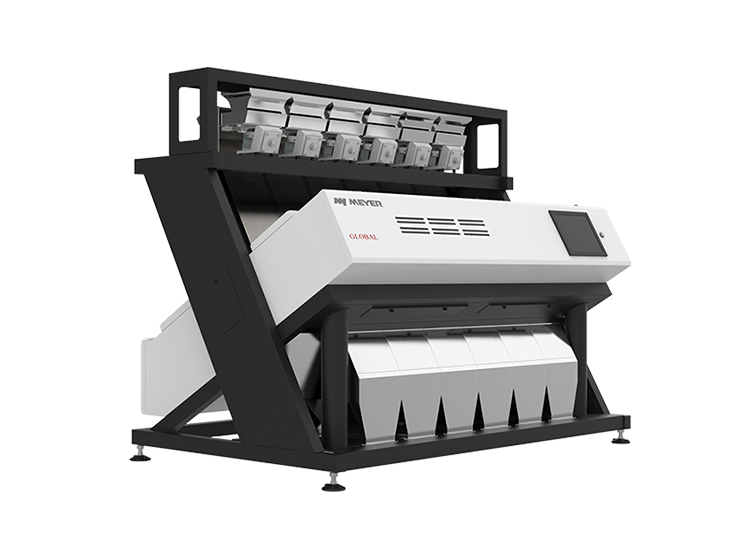

360GLOBAL
MSXC-360RD2
2.7
180～240 50Hz
0.6～0.8
<3.0
2533*1564*2020
1380
480GLOBAL
MSXC-480RD2
3.4
180～240 50Hz
0.6～0.8
<4.0
2991*1564*2020
1730

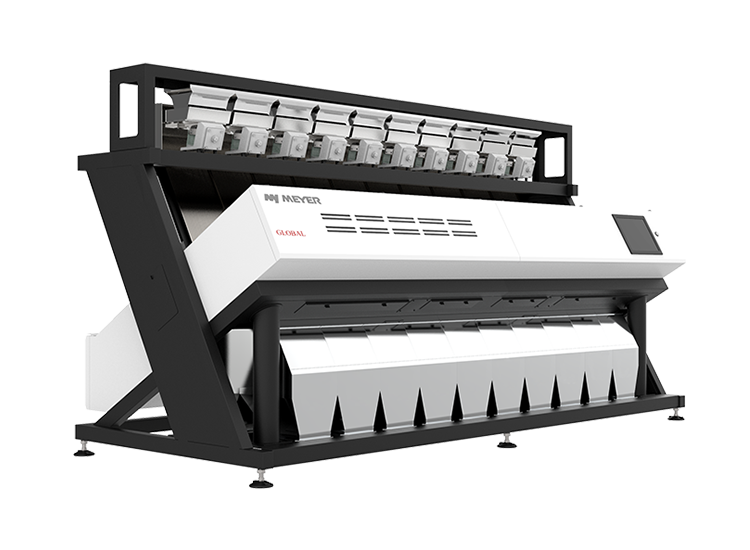

600GLOBAL
MSXC-600RD2
4.0
180～240 50Hz
0.6～0.8
<5.0
3583*1564*2020
2070
