Cashew Colour Sorters
about our product

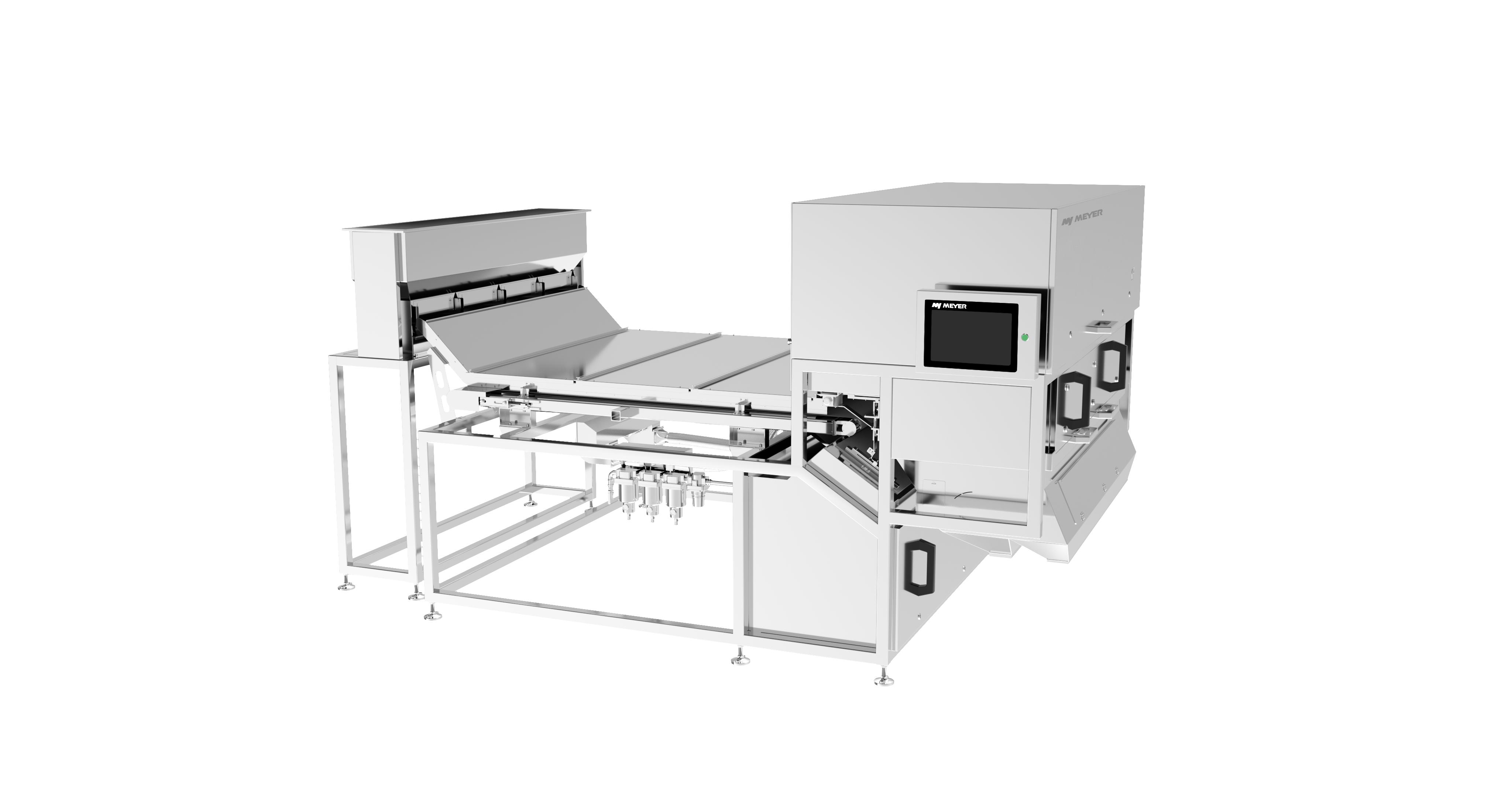

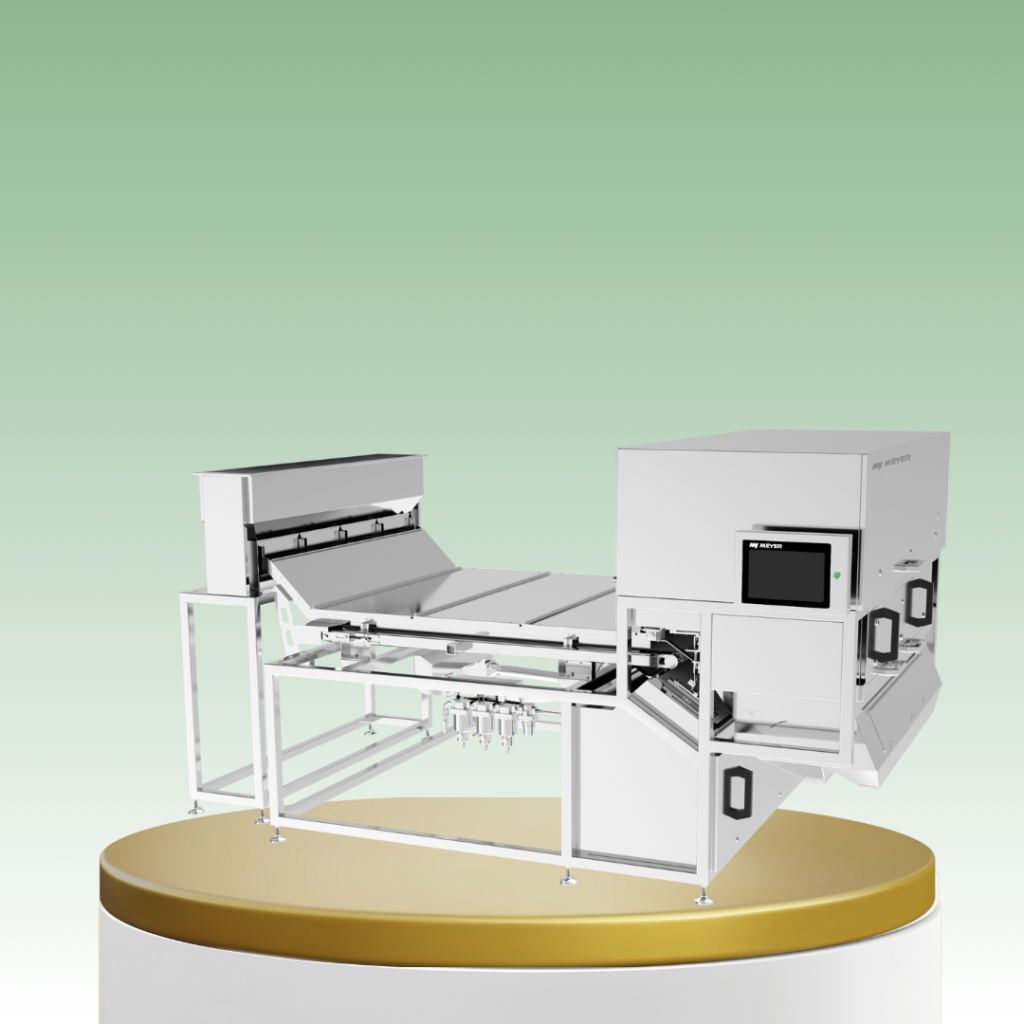

KF Series Cashew Color Sorter
The KF Series is a state-of-the-art multi-usage color sorter designed for high-precision sorting cashews, almonds, garlic, and other materials. The sorter integrates advanced technologies, including a digital control system, a high-frequency vibrator for stable material flow, and an ultra-HD camera system for enhanced clarity.
KNOW ABOUT
Product Specifications
Equipped with
Ultra-wide-angle four Camera ultra-clear Lens
know about
Key Features
High-frequency Vibrator
Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.
Ultra-HD Camera System
The minimum identification area can reach 0.0025mm², to ensure clearer material identification.
Targeted Positioning Technology
Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.
Intelligent Anti-shattering Technology
Through the targeted rejection algorithm and soft landing design, reduces the stress on the material and maximizes the control of breakage.
Simple Interface
Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.
Highly Hermetic Sorting Chamber
Airtightness exceeds 99%, offering robust protection against dust, water, and oil to ensure stable equipment performance.
| Name | Model Name | Power (KW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimension (L*W*H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
|
KF 120 |
6SXZ-120KF3 |
3.6 |
180～240 50Hz |
0.6～0.8 |
<2.0 |
3910*1660*2030 |
1070 |
|
KF 240 |
6SXZ-240KF3 |
4.7 |
180～240 50Hz |
0.6～0.8 |
<3.0 |
3910*2260*2030 |
1460 |
|

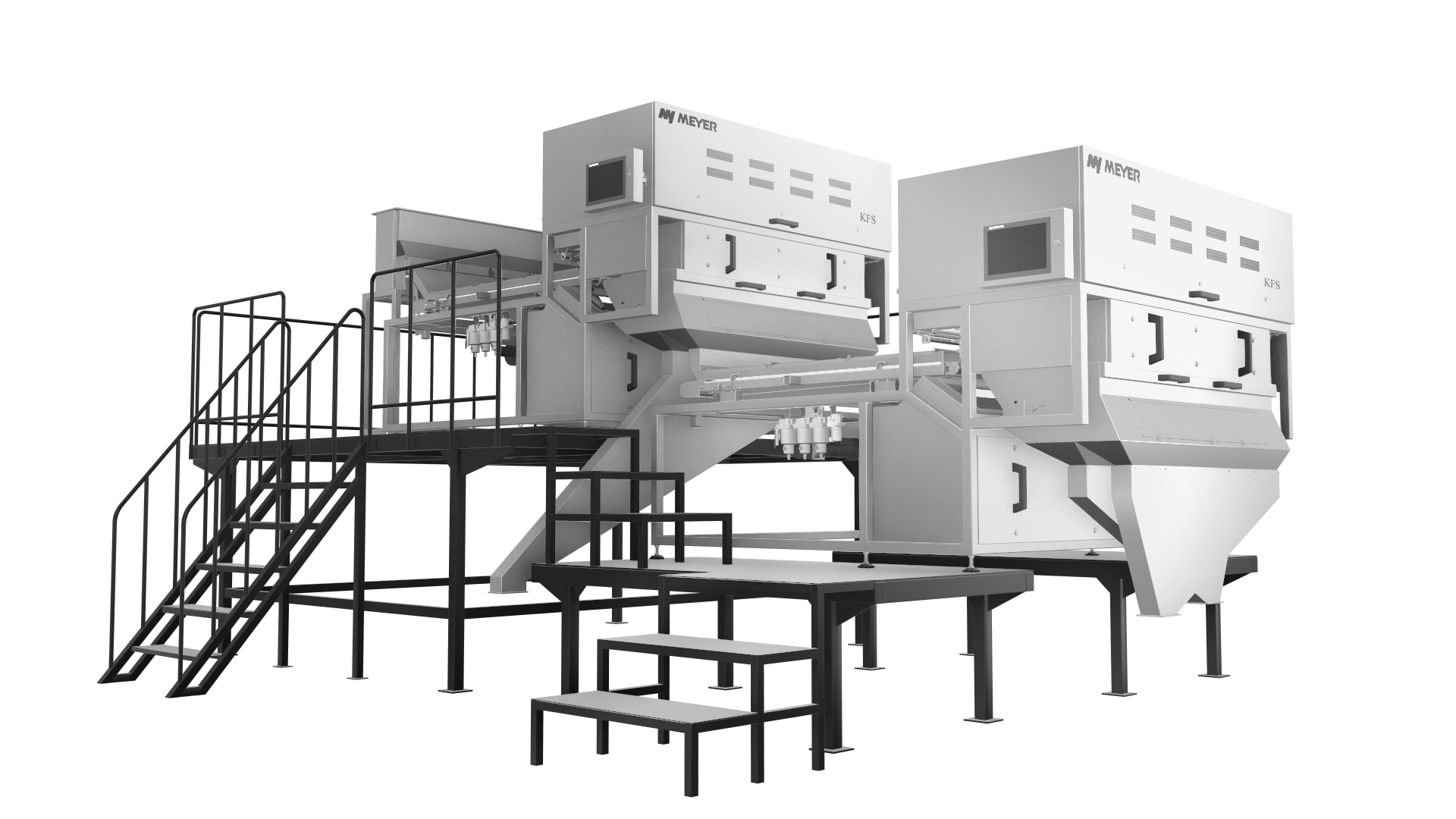

240KFS3 |
6SXZ-240KF3-P1 |
6.4 |
180～240 50Hz |
0.6～0.8 |
≤6.0 |
8649*3500*3666 |
2710 |
Similar Products
K Series
Belt Type
KM Series
Belt Type

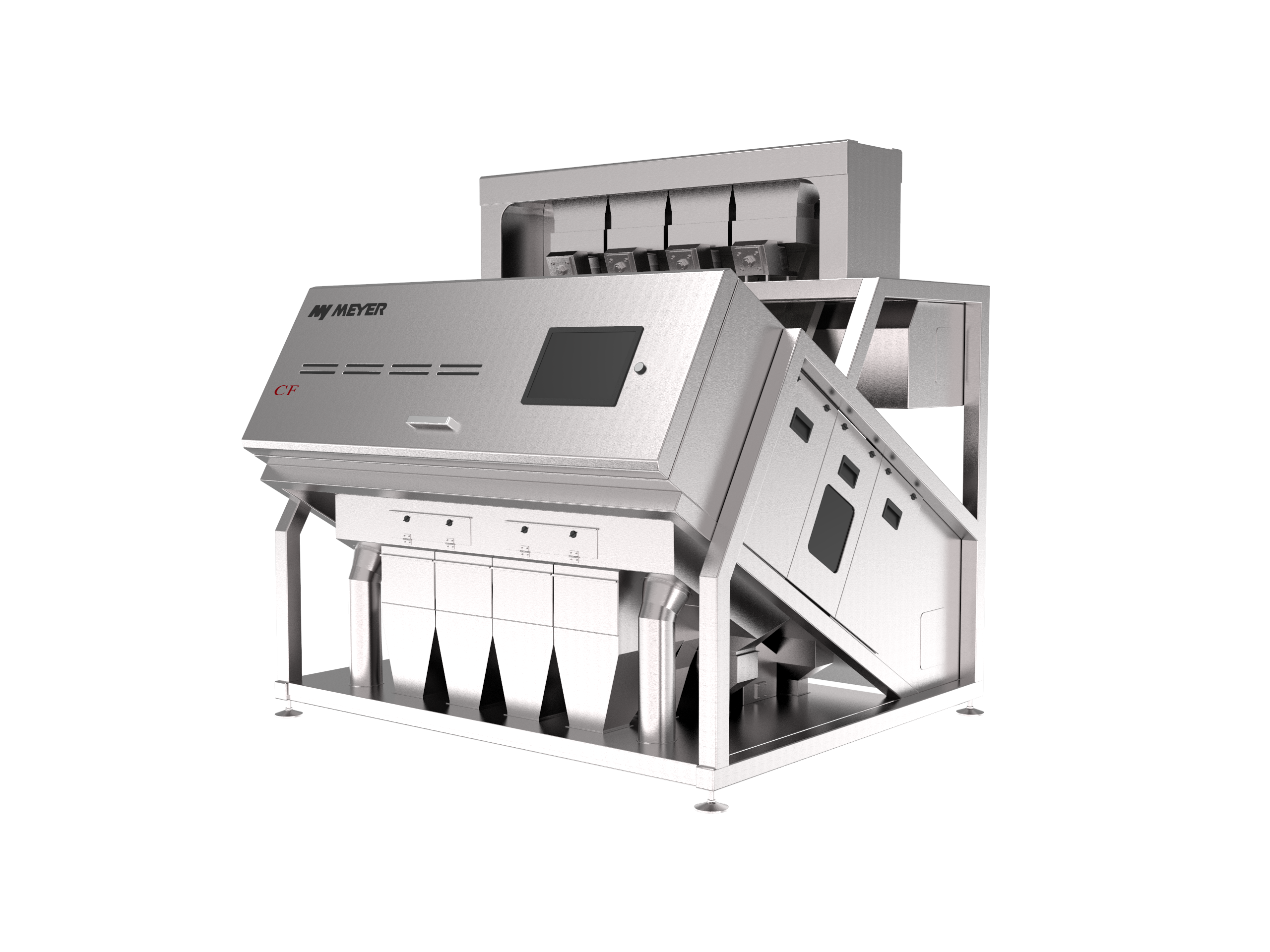

CF Series
