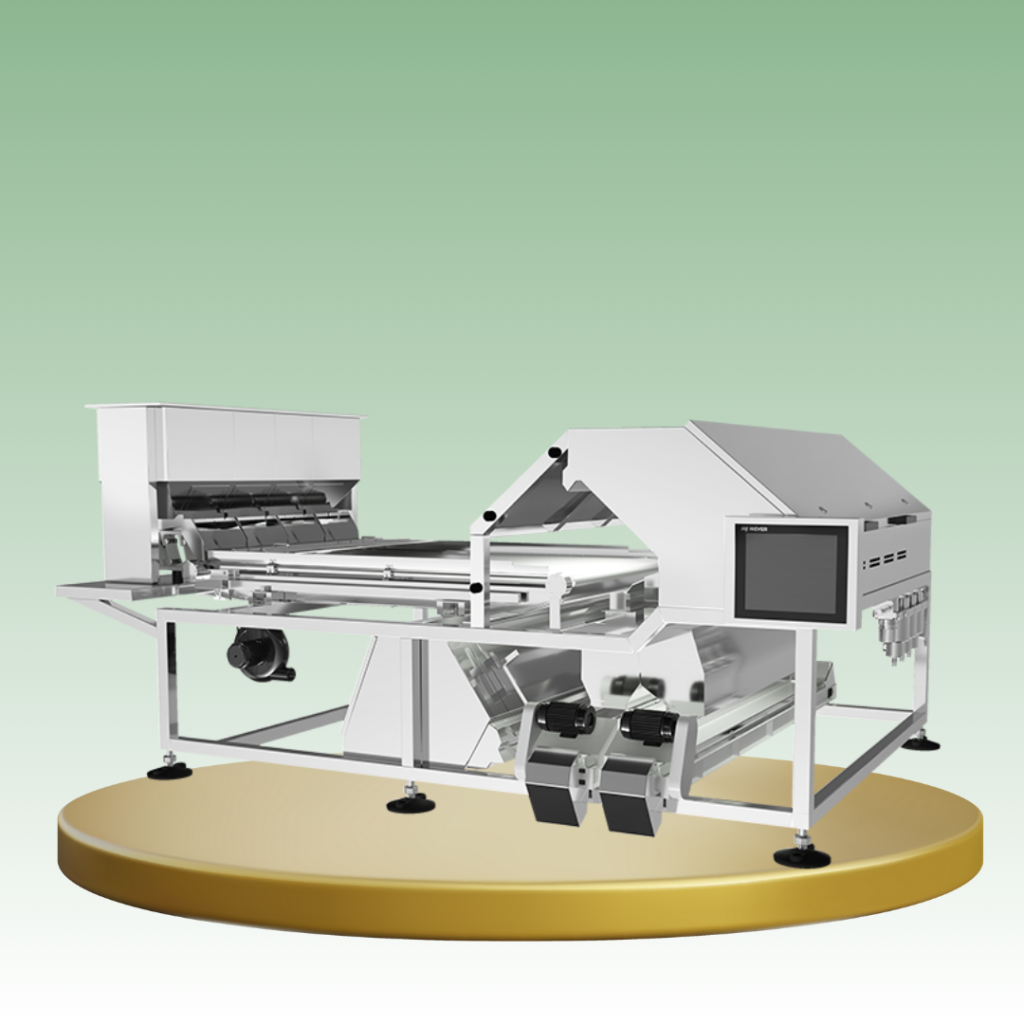

KM Series Color Sorter

The K Series is a low-speed multi-usage color sorter designed to sort a wide range of irregular, large-size, fragile, and oily food. The sorter integrates advanced technologies, including a digital control system, a high-frequency vibrator for stable material flow, and an ultra-HD camera system for enhanced clarity.

Performance Overview

Equipped with UHD deep learning system, it is capable of accurately sorting of impurities and defects in complex scenes, and can remove imperfect particles such as discolored particles, damaged particles, moldy particles, insect damage particles, and impurities such as glass, plastic and sand.

Application Field

☛ Grain & Pulse: Coffee Bean, Peanut Kernels
☛ Nut: Walnut Kernel, Pine Nuts
☛ Fruit & Vegetable: Soya Bean Pod
Main Image

KM Series (Low Speed)
Multi-usage Color Sorter

Enquire
Contact Us

KNOW ABOUT

Product Specifications

Equipped with

UHD2.0, High resolution and High-speed Computing Power, Deep Learning System

It adopts ultra-high definition imaging combined with a multi-core processor, enabling efficient parallel processing of both shape and color sorting.

This advanced technology increases imaging accuracy and processing speed by up to four times, significantly enhancing sorting performance.

Equipped with

Intelligent Anti-Crushing System

Effectively reduce the crushing rate, thereby reducing product loss, improving customer revenue and enhancing competitiveness.

Equipped with

Anti-oil and Waterproof Design

Enhances the machine's resistance to oil, dirt, and water, thereby ensuring sustained sorting accuracy and providing safer, more reliable operation.

know about

Key Features

Digital Electrical Control System

Adoption of topological structure reduces redundant control modules by 45% and realizes hidden wiring design, which controls the sudden failure of core components from the source and guarantees a stable and reliable operation process.

High-frequency Vibrator

Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.

Ultra-HD Camera System

The minimum identification area can reach 0.0025mm², to ensure clearer material identification.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Maglev Ejector 3.0

Using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Intelligent Anti-shattering Technology

Through the targeted rejection algorithm and soft landing design, reduces the stress on the material and maximizes the control of breakage.

Simple Interface

Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.

Highly Hermetic Sorting Chamber

Airtightness exceeds 99%, offering robust protection against dust, water, and oil to ensure stable equipment performance.

Remote Service

PC/mobile control, can provide online after-sales service such as commissioning, physical examination, maintenance guidance.
Name Model Name Power (KW) Voltage (V) Air Pressure (MPa) Air Consumption (m³/min) Dimension (L*W*H mm) Weight (kg)
KM 120
120KM5
3.6
180～240 50Hz
0.6～0.8
<2.0
3600*1760*1600
850
KM 240
240KM5
4.7
180～240 50Hz
0.6～0.8
<3.0
3600*2350*1600
1050
