XS Series Cashew Color Sorter

XS Series is an X-Ray Inspection Machine designed for food materials, equipped with a Beryllium window source for precise detection of high-density impurities. It utilizes AI deep learning technology to effectively identify and handle complex impurities and defects.

Performance Overview

Ensures thorough sorting of beans, nuts, seeds, peanuts, fruits, vegetables, tea, aquatic products, and other food materials. The system efficiently removes high-density contaminants such as glass, metal, stone, and ceramics, while also addressing issues like worm-eaten, hollow, and damaged items.

Application Field

☛ Grain & Pulse: Red Bean, Mung bean, Soybean, Fava Bean, Peanut Kernels
☛ Nut: Walnut, Almond Kernel, Almond, Pecan, Macadamia Nut, Pistachio, Pine Nut, Cashew, Sunflower Seed, Watermelon Seeds, Pumpkin Seed, Hazelnut
☛ Fruit & Vegetable: Dehydrated Carrot, Green Stalk, Frozen Corn, Pepper, Cumin
☛ Aquatic Products: Shellfish
Main Image

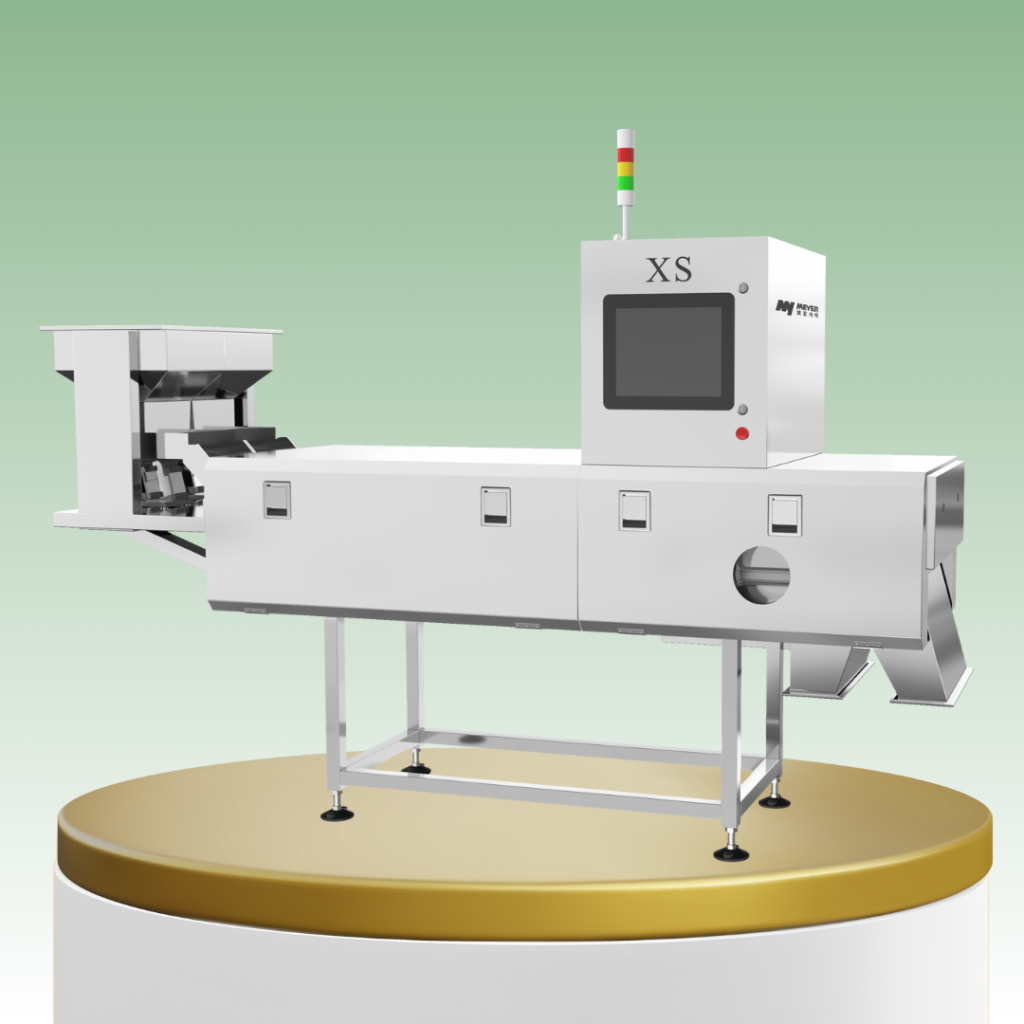

XS Series
X-Ray Inspection Machine for Food Material

Enquire
Contact Us

KNOW ABOUT

Product Specifications

Equipped with

Adopt International Advanced Beryllium Window Source

Clear imaging enables the detection of high-density impurities such as stones, glass, soil, ceramics, and metal, based on material density, thickness, and composition—features that are invisible to the naked eye.

High accuracy with a detection precision of up to 0.05mm, allowing for the identification of impurities with similar densities that would otherwise be difficult to distinguish.

Equipped with

AI Deep Learning Technology

Powered by a massive sample database, the system quickly builds and iterates deep learning sorting models to effectively handle complex foreign impurities and defects that traditional algorithms struggle with.

Optimized for high output, the technology meets customer demands for variability and precision in sorting, ensuring refined results even for challenging materials.

know about

Key Features

X-Ray Imaging Technology

Utilizing an advanced international beryllium window source, the system delivers clearer imaging, making it easy to identify foreign objects with similar densities

Maglev Ejector 3.0

Using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Simple Interface

Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.

Intelligent Alarm

Equipped with visual LED indicators, the system allows for easy detection and resolution of abnormalities in signals, lighting, air pressure, and other conditions, ensuring a more reliable and secure processing workflow.

Remote Service

PC/mobile control, can provide online after-sales service such as commissioning, physical examination, maintenance guidance.
Model MY8045-60XS MY8060-80XS
Configuration(mm)(L*W*H)
2530X1100X2200
2530X1250X2400
Net weight(kg)
580
680
Conveyor belt width(mm)
570
720
Size of materials(mm)
Width≤450, Height≤35
Width≤600, Height≤35
Conveyor belt speed(m/min)
10-20(adjustable)
10-20(adjustable)
Operating environment
Ambient temperature 0-40℃,
relative humidity 30-85% No condensation,
No freezing, upheaval
Ambient temperature 0-40℃,
relative humidity 30-85% No condensation,
No freezing, upheaval
Voltage
AC220V±10%, 50Hz±3, 2.5kw
AC220V±10%, 50Hz±3, 2.5kw
Air pressure
0.6-0.8MPa
0.6-0.8MPa
Air consumption
<0.3m3/min
<0.3m3/min
X-ray output
Beryllium350W, Max80kV/8.0mA
Beryllium350W, Max80kV/8.0mA
Sensitivity(mm)
SUS ball≥∅0.3
SUS ball≥∅0.3
Interface
17 inch LCD touch screen
17 inch LCD touch screen
